Canadian Solar 395W
Specifications

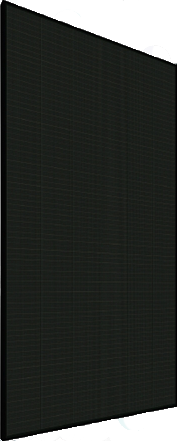

Canadian Solar 395 W (HiKu6 CS6R-395MS)
395 W monocrystalline PERC module built for reliable residential and light commercial performance. Half-cut cell architecture with 108 cells improves shade tolerance, reduces resistive losses, and enhances thermal behavior. Module efficiency up to 20.2%.
Electrical (STC)
Vmp 30.6 V · Imp 12.91 A · Voc 36.6 V · Isc 13.77 A
1000 V or 1500 V max system voltage (depending on configuration) · 25 A series fuse · 0 to +10 W power tolerance
Thermal Performance
Pmax −0.34%/°C · Voc −0.26%/°C · Isc +0.05%/°C
NMOT 41 ± 3 °C · Operating range −40 °C to +85 °C
Physical
67.8 × 44.6 × 1.18 in · 47.0 lb
Anodized aluminum alloy frame · 3.2 mm AR tempered glass
IP68 junction box with 3 bypass diodes · MC4 / MC4-EVO2 compatible connectors
Durability & Ratings
Heavy snow load up to 5400 Pa · Wind load up to 2400 Pa
Class A application rating · UL 61730 fire rating (Type 1 or Type 2 depending on system voltage)
Warranty
12-year product warranty
25-year linear performance warranty
≤2% first-year degradation · ≤0.55% annual degradation thereafter
395 W | 20.2% efficiency | PERC half-cut technology
