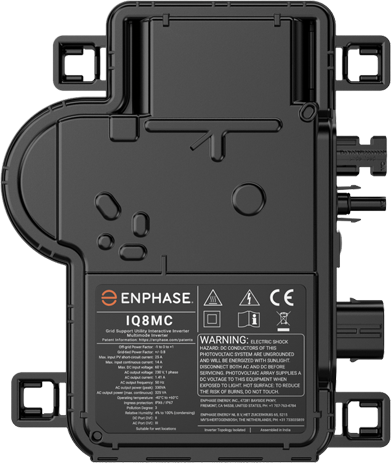

Enphase IQ8MC Microinverter

The Enphase IQ8MC microinverter is designed for residential systems operating on split-phase 240 V or 208 V single-phase service. It delivers module-level AC conversion with support for modern grid interconnection requirements and utility voltage ranges.

Electrical (DC Input)
MPPT voltage range 25–45 V
Operating range 18–58 V
Maximum input DC voltage 60 V
Maximum continuous DC current 14 A
Maximum module short-circuit current 20 A
Compatible with PV modules typically rated 260–460 W

Electrical (AC Output)
Maximum continuous output power 320 VA @ 240 V
Peak output power 330 VA @ 240 V
Nominal grid voltage 240 V split-phase
Nominal frequency 60 Hz
CEC weighted efficiency up to 97.0%
Power factor adjustable (0.85 leading to 0.85 lagging)

Thermal & Environmental
Operating temperature range −40 °C to +65 °C
Natural convection cooling (fan-less design)
Approved for wet locations
NEMA Type 6 outdoor enclosure

Mechanical
Dimensions 8.3 × 6.9 × 1.2 in
Weight 2.43 lb
Integrated MC4 connectors
Class II double-insulated, corrosion-resistant enclosure

Compliance & Safety
UL 1741-SA / SB
IEEE 1547-2018
NEC rapid shutdown compliant (NEC 2014–2023)
FCC Part 15 Class B

Warranty
Up to 25-year limited warranty
