QCells 400W
Specifications

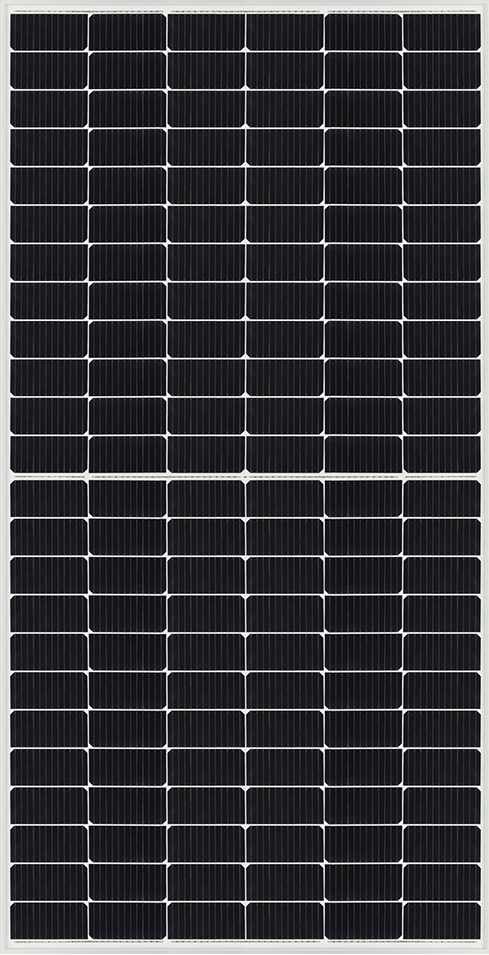

Qcells 400 W Q.PEAK DUO BLK ML-G10+
400 W monocrystalline bifacial module built with Qcells Q.ANTUM DUO Z technology and half-cut cell architecture. Zero-gap cell layout improves efficiency and reduces electrical losses, while bifacial design enables additional rear-side energy gain in reflective environments. Module efficiency up to 21.1%.
Electrical (STC)
Vmp 37.13 V · Imp 10.77 A · Voc 45.30 V · Isc 11.14 A
1000 V max system voltage · 20 A max series fuse · −0 / +5 W power tolerance
Thermal Performance
Pmax −0.34%/°C · Voc −0.27%/°C · Isc +0.04%/°C
NMOT 43 ± 3 °C · Operating range −40 °C to +85 °C
Physical
74.0 × 41.1 × 1.26 in · 48.5 lb
Black anodized aluminum frame · 3.2 mm AR thermally pre-stressed glass
Composite backsheet · Stäubli MC4 connectors · ≥ 1830 mm leads
Durability & Ratings
5400 Pa front / 4000 Pa rear test load
UL 61730 listed · Type 2 fire rating · Class II module classification
Warranty
25-year product warranty
25-year linear performance warranty
≤ 2% first-year degradation · ≤ 0.5% annual degradation thereafter
400 W | 21.1% efficiency | bifacial PERC
