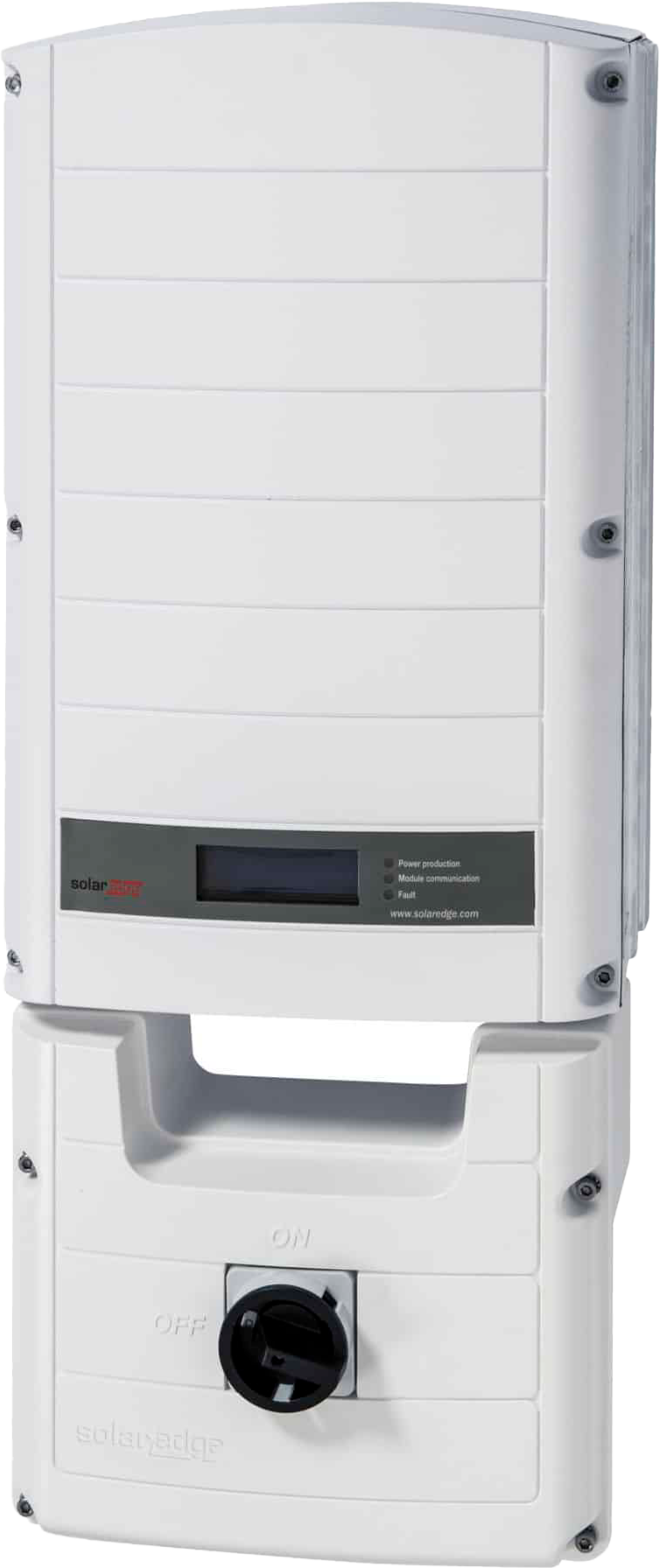

Solar Edge 10KW (SE10KUS)
The SE10KUS supports extended string lengths and varied array geometries commonly found in larger residential, light commercial, and ground-mounted systems. Its DC-optimized design maintains consistent inverter operation across mixed orientations and partial shading conditions, while meeting modern rapid shutdown and utility interconnection requirements.

Electrical (AC Output)
Rated AC output power 10,000 W
Nominal AC voltage 120/208 V, three-phase
AC frequency 60 Hz
Continuous output current 27.8 A per phase
Power factor adjustable ±0.85 to 1.0
Total harmonic distortion ≤ 3%

Electrical (DC Input)
Maximum DC power (STC) 17,500 W
Operating DC voltage range 370–600 V
Maximum DC voltage 600 V
Maximum input current 27.8 A
Transformerless, ungrounded design

Efficiency
CEC weighted efficiency 97.0%
Nighttime power consumption < 4 W

Safety & Compliance
Integrated DC disconnect
Rapid shutdown compliant (NEC 2014–2023)
Arc-fault protection (UL 1699B)
UL 1741 SA / SB
IEEE 1547-2018, Rule 21 compliant

Mechanical & Environmental
Dimensions (with safety switch) 31.8 × 12.5 × 11.8 in
Weight 78.2 lb
Cooling fan-assisted
Operating temperature −40 °F to +140 °F
NEMA 3R enclosure (outdoor rated)

Warranty
12–20 year inverter warranty (depending on configuration)
